Friday, 8 September 2017

How Does a Computer Mouse Works?

Working Principle of a Computer mouse

Every person reading this article undoubtedly have held a computer mouse in your hand.But how many of you wonder how this little device works.Here we have tried to explain 'how does a computer mouse works?'. Computer mouse is a pointing device that detects two-dimensional motion relative to a surface. This motion is typically translated into the motion of a pointer on a display.Mouse is an HID (Human Interface Device) that makes your computer easy to use.Mouse can also be viewed as a cursor control device.

Types of Computer Mouse

Mainly there are two types of 'mouses'. Ball mouse(Mechanical mouse) and Optical mouse.

How does a mechanical mouse work?


mechanical ball mouse working
A ball mouse
How does a ball mouse actually work? As you move it across your desk, the ball rolls and pushes against two plastic rollers(2) mechanically connected to thin wheels (3). One of the wheels detects movements in an back-and-forth direction (say x axis),the other detects side-to-side movements (y-axis).They how they convert this movements into signals?

when you move the mouse, the ball moves the rollers that turn one or both of the wheels. If you move the mouse straight forward or backward, only the x-axis wheel turns; if you move to the right or left, only the y-axis wheel turns. And if you move the mouse at an angle, the ball turns both wheels at once.

Each wheel has slots on their edges , as it turns, the slots repeatedly break a infrared/light beam. The more the wheel turns, the more times the beam is broken. Counting the number of times the beam is broken will give how far the wheel has turned and how far you've moved the mouse. The counting,measuring and calibration are done by the microchip inside the mouse, which sends the signals down the cable to your computer. Software in your computer moves the cursor on your monitor by a corresponding amount.

How Optical mouse works?

Optical mouse working principle is entirely different from that of mechanical mouse.
An optical mouse uses a light source, typically a light-emitting diode (LED)/LASER, and a light detector, such as an array of photodiodes, to detect movement relative to a surface.

Typical optical mouse has three major parts, a light source(LED), light guiding channel(Plastic LENS) and light detector(CMOS array).
Optical mouse parts and functions
In most of the optical mouse RED LED is the light source.Plastic light guide(LENS) channels the light from the LED at an angle, down onto the desk. Light-detector chip measures light reflected back up from the desk.This CMOS light detector is a low resolution Camera.

This CMOS array takes successive images of the surface on which the mouse operates.This successive images will be processed by a DSP(Digital signal processor).Successive images will have only small differences.So, it is possible to determine in which direction mouse has moved by comparing this images.As computing power grew cheaper, it became possible to embed more powerful special-purpose image-processing chips in the mouse itself.
working of optical mouse
Illustration of successive images captured by CMOS array
Assume this is your desktop/mouse pad surface. Let 1,2 and 3 be the images captured by light detector at different instance of time t1,t2 and t3 respectively. If image 3 comes after image 1, we can easily infer that mouse moved towards right side. If image2 follows image1 ,it means mouse has moved towards left.Like this DSP determines direction of movements.

Other variants of computer mouse

Inertial and gyroscopic mice:Often called "air mice" since they do not require a surface to operate, inertial mice use a tuning fork or other accelerometer to detect rotary movement for every axis supported
3D mice:These devices generally function through ultrasound and provide at least three degrees of freedom.

logitec 3D mouse
Logitech 3D ultrasonic mouse
What we have seen here is just an abstract of working principle of mouse.Following reference links will explain the working of mouse in an elaborated way.
For more interesting stuffs Like our FB page.Don't forget to share this article on "How Does a Computer Mouse Works?"

Thursday, 17 August 2017

Nokia 8:Use front and back camera simultaneously with it's dual sight mode

Nokia 8's exclusive Dual-Sight mode lets you use both front and back cameras simultaneously for split-screen photos and video.First in mobile phone,Nokia 8 also features OZO 3D audio technology.

Nokia 8 comes with dual sight mode enable using front and back camera simultaneously
Nokia 8 comes with 3 unique features:Dual-sight,OZO audio,and liquid cooling
HMD Global has launched its latest android phone Nokia 8 with a unique feature.After the reentry Nokia had failed to make an impact in Handset market.But with the launch of Nokia 8,latest in android series,Nokia is on it's way back. Manufactures has come up with an innovative feature called Dual-Sight mode which lets you use both front and back cameras simultaneously for split-screen photos and video.It is surely first of it's kind out there in the handset arena.Can Nokia regain it's past glory?.Let's have a look at the new features of Nokia 8.

Camera:Be less Selfie. Be more #Bothie.

Cameras are designed not for selfie lovers,but for #Bothie lovers.Share your moments together.


Super-slim cameras with ZEISS optics:Nokia 8 features a 13 MP dual image-fusion rear camera with both colour and monochrome sensors, plus a wide-angle 13 MP phase detection auto-focus front camera. Both front and rear cameras are equipped with ZEISS optics, meaning every snapshot moment becomes a story worth sharing.

Use both front and rear cameras simultaneously with Dual-Sight mode.A first for mobile phones, the exclusive Dual-Sight mode lets you use both front and back cameras simultaneously for split-screen photos and video.

Live video streaming to Facebook Live™ and YouTube Live with a single touch:Share the moment in the moment with built-in streaming straight to Facebook Live™ and YouTube Live.
Nokia8 facebook live streaming
Nokia 8 facebook live
Record 4K video with Nokia OZO spatial 360° audio:Video is not only about visuals,but also audio too.Experience new dimensions of sound with industry—standard OZO Audio technology tor 360° recording.Audio Focus mode lets you accentuate the right sounds while reducing ambient sounds or
background noise. Coupled with 4K video capture.Nokia 8 is the first ever phone to feature Nokia OZO spatial 360° audio built in to its core.

Nokia 8 Hardware

Chip-set:To maximize performance, Nokia 8 is built upon the cutting-edge Qualcomm® Snapdragon™ 835 Mobile Platform, engineered to deliver exceptionally long battery life and superior graphics performance.

Liquid cooling: liquid-cooled copper pipe runs across the length of the Nokia 8, with graphite shielding dispersing heat from the Snapdragon chipset throughout the metal shell. it’s the perfect way to keep heat levels to a minimum, and thus – potentially – extend battery life.

Display:Bright 5.3” 2K polarized display, protected by sculpted Corning® Gorilla® Glass 5
Memory:4 GB of RAM
Loads of space with 64 GB mass storage and MicroSD card support up to 256 GB

Body design:Precision machined from a single block of 6000 series aluminum
Polished mirror finish

Nokia8 Android OS and softwares

Nokia 8 comes with Android Nougat 7.1.1, packed with the full spread of Google's most popular apps and no unnecessary extras. Plus, we’ll make sure you keep getting regular updates to help you stay on top of features and security.
Unlimited storage with Google Photos.
Google Assistant, always ready to help:From managing tasks and planning your day to controlling your favourite apps and smart home devices, Google Assistant is ready to help wherever you are.

Nokia 8 Full spec in Details


Monday, 7 August 2017

Why it is impossible to completely ban blue whale challenge ?

It is nearly impossible to ban deadly Blue Challenge,Blue whale is not a game that can be downloaded on PC or mobile

Deadly blue whale challenge game continuing its spree of takings lives across the world.Its recent victim is a 14 year boy from Mumbai,India. Like other participants he ended up with jumping off the terrace of his flat.
It is difficult to trace spread of game since its links are not found on playstore or any other site.
But the Challenge is not a game that can be downloaded on a phone or a website.You can't find a link of blue whale game anywhere on internet.Efforts by cyber experts to locate the game — on Play Store and a series of websites — yielded no results. The challenge can only be undertaken when its creators get in touch with would-be users.

Deadly Blue Whale is a 50-day-challenge.Blue Whale began in Russia in 2013 with "F57", one of the names of the so-called "death group" of the VKontakte social network(a famous social media network among Russian speaking), and allegedly caused its first suicide in 2015..It is believed that the founder of this deadly game is a 22-year-old Russian, Filipp Budeikin,a former psychology student who was expelled from his university,was arrested last November for allegedly inciting teenagers to take their lives.According Filipp Budeikin challenge aimed at "cleansing society" by eliminating "people who are worthless"by pushing them to suicide those he deemed as having no value.

The game gives a task a day — each one potentially fatal — to the player for 50 days.

The game is based on the relationship between the challengers (also called players or participants) and the administrators. It involves a series of duties given by the administrators that players must complete, usually one per day, some of which involve self-mutilation. Some tasks can be given in advance, while others can be passed on by the administrators on that day, the last task being suicide.

The list of tasks, to be completed in 50 days, includes waking up at 4:20 A.M., climbing a crane, carving a specific phrase on the person’s own hand or arm, doing secret tasks, poking a needle to the arm or leg, standing on a bridge and roof, listening to certain type of music, and watching scary and psychedelic videos sent to the challengers by the administrator.
Th administrators of the game reach out to their victims through different social medias like Instagram,Facebook,WhatsApp or any other online forums.Victims are selected based on their recent social media posts and activities. If your posts speak that you are 'feeling lonely' or ''depressed' ,then you are the perfect target.They will collect maximum personal details about you ,so that they can easily push you towards suicide  through blackmailing or other sort of psychological approaches.

A journalist from NB Bishkek news (Kyrgystan) writes in a personal account on the website about registering on Instagram as a teenage girl, then making "a couple of naive posts, depressive photos" and specific tags.
"After a day, they knocked. — Are you in Game? — Yes," the journalist writes on NB Bishkek news.

Teenagers are prime targets of this challenge.Why? ,they are willing to do anything to prove/justify/live up to a certain image. During adolescence risk taking behaviour is in its peeks. It is the age during which one seeks his own identity and role in the society and family. To get others attention they will take any risk.

A report by Radio Liberty, a US government-funded broadcasting organisation, said one of their correspondents who had signed up for the challenge as a 15-year-old asked what would happen if she wanted to get out.
The curator replied, "I have all your information. They will come after you."

Instagram and Facebook have come up with measures where a user is directed to a help page when they search for hashtags related to the Blue Whale Challenge.
"Posts with words or tags you're searching for often encourage behaviour that can cause harm and even lead to death"
Facebook search result  for 'Blue Whale'
Facebook suggests three ways to get through your difficult times
Today,internet is accessible to even small kids.Parents need to monitor their children's interests on Internet,and show them real world instead of allowing them to immerse in virtual world.

Thursday, 27 July 2017

JioPhone:features,specs and how to book it

Reliance JioPhone features specification dataplans and how to book JioPhone:


JioPhone features
Reliance's free JioPhone aims India's billion dollar-strong market

Reliance jio launched country's first 'free' smartphone for getting more Indian online.Reliance industries chairman Mukesh Ambani announced the official launch of JioPhone on 21 July at reliance AGM 2017.Eventhough phone is taged 'free', buyers has to spend refundable fee of 1,500 rupees ($23.30).
JioPhone will be available for user testing in beta form from August 15.Booking will start from 24th July. JioPhone will be physically available to those who have pre-booked, on a first come first serve basis, September onwards. The company will make available 5 million phones every week . The deposit will be refunded after 36 months on the return of the phone. Voice calling will be free for life while unlimited data packs will cost Rs 153 a month on the device.

Important features of Reliance JioPhone

Quaoting the words of Isha Ambani , Akash Ambani and kiran thomas from Reliance AGM2017.
JioPhone is an awesome innovation,made in India by young Indians for all Indians.JioPhone i may look familiar but it is intentional.It is designed to be extremely easy and friendly to use.It is the most intelligent and affordable phone.

Network:It is 100% 4G LTE phone

User Interface and Languages:It has a revolutionary and unique user interface.JioPhone will support 22 major Indian languages.

Revolutionary Voice command Interface:Still using the keyboard you can simply speak to the phone.You can make calls and SMS using voice command.You can also enter SMS text by simply speaking.Simply intelligent,agreed??.You can even brows internet using your voice.Your search results will also be narrated by phone.Jiophone not only just listen in english,it is capable of understanding other languages also.

Pre-installed Jio Apps:Reliance JioPhone assures unlimited entertainment with preinstalled jio apps like JioTV,JioMusic,JioCinema etc..

JioPhone Life saver(sos):On long pressing button 5 ,JioPhone will automatically send distress message to your dear and near ones.You can save emergency contact to which distress message will be sent.
It also send you exact position(latitude and longitude) to your emergency contact.This is an invaluable feature of the JioPhone.
Very soon jio will integrate local Police and Emergency service to this feature.

JioPhone TV cable:This is useful for remote parts of India where cable TV and high speed internet is not there.Young JIO engineers have developed a special and affordable Jio Phone TV cable that connects Jio Phone with any television screen.Not just smart TVs ,even your old CRT TV can also be connected using this specially designed cables.Simply put, you can project your JioPhone on to big TV screen.
A special monthly plan of Rs.309 is also there for such users.

NFC Digital Payments:JioPhone will be introducing NFC(Near Field Communication) technology soon. All indians can link their bank accounts,Jandhan accounts, UPI accounts or any other payments cards to JioPhone and make payments using simple tap of Jiophone.This feature will be automatically added with phone software updates.

JioPhone Voice and Data Plans

Like any other JIO SIM plan,voice calls are life time free.For JioPhone users JIO DHAN DHANA DHAN plan is available for Rs.153 per month.And for JIO TV cable users there is a special monthly plan of Rs.309.

Jio phone Specification

Reliance jiophone specifications
JioPhone Spec presented at reliance AGM2017 JioPhone Launch event
Reliance Chairman Mukesh Ambani has not yet reveiled complete specifications of JioPhone.But here is the speculations of JioPhone specs.

  • Display:QVGA  2.40-inch,Resolution240x320 pixels
  • Expandable storage typemicroSD upto 128GB
  • SIM slot:Single sim GSM,4G LTE
  • Connectivity:Bluetooth v 4.10,NFC
  • 512 MB RAM
  • 4 GB internal storage
  • 2MP rear camera
  • 2000mAh battery

How to book a JioPhone

If you are already using a smartphone go to playstore and download MyJIO application.You can pre-book the JioPhone using the My JIO app. If you don't have access ti MyJIO app you can visit a Jio retailer from August 24. It is worth mentioning that theReliance Jio Phone will be up for pre-orders starting August 24. It will be available from August 15th on the first-come-first-serve basis.
The target is to make 5 million phones available every week.
Watch highlights of Reliance AGM2017:JioPhone launch

Wednesday, 18 January 2017

What is the need of dual rear camera in smartphones?

Dual camera system in smartphones for better photography

Using dual lens system, some  limitations of phone cameras can be overcome to an extend
Content Highlights
  • Dual Camera system in smartphones
  • Need for dual camera in smartphones
  • How dual camera system works
  • Advantages of dual camera photography in smartphones
  • Phones with dual camera system

Smartphone technologies are evolving much faster than anything else.Many leading manufacturers are rolling out dual camera smartphones for better better photography.Thickness of smartphone is less than 10mm and people always prefer slimmer phones.So, phone cameras are starting to reach some hard physical limits.To overcome this constraint phone companies are looking for alternative
means to keep improving.Dual camera is just one solution to overcome this constraint to an extend.
Dual cameras were first introduced in the HTC Evo 3D smartphone way back in 2011. At the time, the dual camera was used to capture 3D images to work with the 3D screen of the HTC.In 2015, Lenovo introduced a dual front camera in the Vibe S1 — it had a primary 8MP front camera and second 2MP front camera to capture better selfies. Vivo is the latest brand to launch a smartphone with dual front camera in the Vivo V5 Plus.

Need for Dual cameras in smart phones

When compared to other digital cameras phone cameras have got lot of limitations.They are listed below.
  • Limited optical zooming
  • Limited aperture
  • Lack of multi-focus
  • Smaller sensor size
To overcome above limitations phone companies have introduced dual cameras and dual lens cameras.

How Dual Camera Works in Smartphone

We can call main camera primary and other one secondary.Usually primary camera will be of higher pixels and secondary of lower pixel resolution. In a dual lens camera or dual camera setup one camera is used to take the pictures and the other one is to capture the depth of field. It is interesting to see that different phone manufacturers exploit secondary camera in different ways.Some manufacturers use it merely for collecting details about the image captured by primary camera while others use it also for capturing the image.

Advantages of Dual Lens Camera in Smartphones

Greater Depth of Field in Pictures

With dual lens setup you will get wider aperture if both cameras are working together. It allows more light to pass through the lenses to the sensor resulting in greater depth of field in the pictures. We have already seen, one lens is used to capture the image and the other one is used to get the depth of field.

Faster Focus

Dual lens camera give you faster Auto-focus (~ 0.1 seconds) which is not possible in single lens camera smartphone.

Refocus

Refocusing means 'focusing the picture even after the shot has been taken'Dual camera can allow you to refocus the picture.The secondary camera helps to perform refocus functionality.

Bokeh effect

bokeh effect

You can also create the bokeh effect by blurring the out of focus parts or background of a picture. Image processing software also plays a large part in creating this effect.

Better Picture Clarity in low light conditions

Dual Camera Smartphones can takes better quality pictures in low light conditions. This is because dual lenses allow more light to pass to the sensor which results in better picture clarity in areas with low light.

Better Noise reductions and sharpness

By comparing the inputs from primary and secondary cameras special algorithms can easily detect and reduce the noise in the final output.

Disadvantages of rear/front Dual Camera Smartphones

  • Currently dual lens cameras have been designed mainly for high quality photography. Videography has not been benefited by this system so far.
  • Higher cost due to addition of hardware and software.

Now, let’s us have a look at some smartphones that have a Dual-lens rear camera setup.

List of Dual Lens Camera Smartphones

HTC One M8

HTC one M*

HTC is the front runner in dual lens camera technology,The HTC One M8 was released in March 2014 as HTC’s flagship model, replacing the HTC One. HTC One M8 feature 4MP dual camera.
Key cmera features:
  • UFOCUS, where you can change the focus later after the capture is finished.
  • 4MP dual camera with UltraPixel sensor

Apple iPhone 7 Plus

iPhone & Plus

Recenctly launched iPhone 7 plus features dual rear camera.It offers best in class mobile photography with lot of smart features.
Key camera features:
  • Dual 12MP camera (wide-angle F/1.8 + telephoto F/2.8)
  • live bokeh effects.
  • optical image stabilization,
  • quad-LED flash
  • phase detection auto focus,
  • wide color capture
  • face-body detection.
  • The dual camera setup on iPhone 7 Plus offers 2X optical zoom, which is the first of its kind on a smartphone.
  • 10X digital zoom.

Huawei P9

Huawei P9

Huawei P9, is also a real innovation in the world of smartphone camera photography.
Key camera features:
  • Dual 12 MP camera setup with Leica sensors on board, which makes it the best smartphone camera for low-light photography.
  • Among the two lenses on Huawei P9, one(primary camera) is fairly standard and captures color photographs, while the other(secondary) lens is to capture monochrome information. This monochrome sensor captures up to 3x more light to deliver amazing low-light shots.
  • The camera shoots in RAW format,
  • phase detection autofocus
  • Dual-LED (dual tone) flash.
  • Different shooting modes including Photo, Monochrome, HDR, Panorama, Beauty, and Light Painting are provided on board.

LG G5

LG G5

As you know LG is one of the leading smartphone company.They also have come up with dual camera technology in their recently launched LG G5.
Key camera features:
  • Dual-lens camera setup features a 16MP main camera,78-degree angle view with F1.8 aperture.
  • The secondary camera lens is the first of its kind 135-degree super wide angle camera with 8MP resolution and F2.4 aperture. This makes LG G5 the best smartphone in the market for wide angle photography.
  • laser autofocus and a color spectrum sensor

Honor 8

Honor 8

The recently launched Honor 8 is also packed with an innovative bionic 12MP dual-lens system.
Key camera features:
  • One lens enables the system to capture rich color, and the other monochrome lens give the images more light and increased sharpness.
  • Dual lens system suitable for macro images or capturing images in black light, low-light, and complex conditions.
  • hybrid auto-focus technology that enables laser focus for short range imagery and precise depth focus for long range shots
  • DSLR Bokeh effects, an effective manual mode and built-in Light painting modes for Long Exposure shots.

XOLO Black

Xolo Black

This is one of the affordable Dual camera system smartphone launched in India recently
Key camera features
  • 13MP(primary)+2MP(secondary) combination
  • 13MP camera does the capture part and the 2MP camera records the depth of field to defocus the background in the picture.
  • Bokeh effect

ASUS ZenFone 3 Zoom

ASUS ZenFone 3 Zoom

The ASUS ZenFone 3 Zoom was announced at the CES 2017 . It features a dual-lens camera on the rear camera. Primary camera does capture part while secondary lens is for zooming in having 2.3x optical zoom and upto 12x digital zoom.

Sunday, 8 January 2017

HMD launches its first Nokia Android Nougat Phone in China :Nokia 6

Nokia 6:first Nokia Android from its New owner HMD Global

The first Nokia Android smartphone from the new owner HMD Global has finally arrived. From the first look, the Nokia 6 could stand next to some of the phones from major companies.Finnish company HMD Global, which acquired the rights to release Nokia-branded devices after Microsoft abandoned it.
Nokia 6 first android smartphone from HMD
Nokia 6

HMD Global announced the launch of the 5.5-inch Nokia 6 on 8th January 2017. It will only be available in China, as HMD said "it seeks to to meet the real world needs of consumers in different markets around the world."

Nokia 6 Specifications

  • Network:Nokia 6 is a LTE(4G) smartphone
  • Android OS:Nokia 6 runs Nougat out of the box.
  • Display:It has a 5.5-inch HD screen, 2.5D Gorilla Glass
  • Camera:16MP rear and 8MB front cameras,
  • Processor:Qualcomm's Snapdragon 430 processor and
  • RAM:It packs 4GB of RAM
  • Storage capacity: 64GB of storage.
In the press release dated 8.1.2017,HMD announced
Nokia 6 will be available exclusively in China through JD.com. Available in early 2017, Nokia 6 is 1699 CNY
New design philosophy embraces much-loved Nokia phone hallmarks of quality, superior craftsmanship and relentless focus on the consumer experience
Nokia 6 marks the first step for the Nokia brand into Android smartphones with more to come in H1 2017
With the arrival of Nokia 6, consumers will see superior craftsmanship and design quality in action. It takes 55 minutes to machine a single Nokia 6 from a solid block of 6000 series aluminium. It then receives two separate anodising processes, taking over ten hours to complete, with each phone being polished no less than five times. The end result is an aluminium unibody with the highest level of visual and structural quality.

Price of Nokia 6

Nokia 6 will debut exclusively through JD.com in early 2017 in China. Competitively priced for the aspirational smartphone user, the Nokia 6 is 1699 CNY (245.57$)at JD.com.

Monday, 2 January 2017

New features of android 7.0 Nougat

following its naming convention google named android 7 as Nougat
Android is getting sweeter with every new version.The version history of the Android mobile operating system began with the release of the Android alpha in November 5, 2007. The first commercial version, Android 1.0, was released in September 2008. Android is continually developed by Google and the Open Handset Alliance (OHA), and it has seen a number of updates to its base operating system since the initial release.
Versions 1.0 and 1.1 were not released under specific code names, but since April 2009's Android 1.5 "Cupcake", Android versions have had sweets-themed names. Each is in alphabetical order, with the most recent major version being Android 7.0 "Nougat", released in August 2016.

different versions of android
Android Version History at a glance

Android 7.0 Nougat

Android 7 Nougat (Android N) is the seventh major version of the Android OS. First released as a beta build on March 9, 2016, it was officially released on August 22, 2016, with Nexus devices being the first to receive the update.LG V20 was the first new smartphone released with Nougat.

What is new in Android 7 Nougat?

Google has included lot of innovative features in Android 7.1 Nougat.
Multi Locale language settings:Now with android 7 nougat you can switch between different language directly from google keyboard by a single touch.

New emojis:Over 1500 emoji including 72 new ones

Multi-window view and Quick switch between apps:Now you can switch between apps with a double tap, and run two apps side by side. So go ahead and watch a movie while texting, or read a recipe with your timer open.

Multi-window view

High performance graphics:Vulkan™ API is a game changer with high-performance 3D graphics. On supported devices, see apps spring to life with sharper graphics and eye-candy effects.
Android Nougat ensures High performance graphics

High quality virtual reality:With VR mode, Android Nougat is ready to transport you to new worlds. Available on Daydream-ready phones.Daydream is the virtual reality technology developed by google team.Daydream-ready phones are built for VR with high-resolution displays, ultra smooth graphics and high-fidelity sensors for precise head tracking. They’re powered by the new Android 7.0 Nougat.

google daydream headset with controller
google daydream headset with controller


Daydream VR supporting phones:
This is just the start. More Daydream-ready phones are on the horizon.

Doze on the Go:Doze now helps save battery power even when you're on the move. So your device will still go into low power usage while you carry it in your pocket or purse.

Personalisation and notification:More personalised settings and smarter notifications
.
Customised Quick Settings:Rearrange your Quick Setting tiles so you can get to what you want faster.

Notification ,Direct Reply:Mini conversations within your notifications let you reply on the go – without opening any app.
Direct reply  feature in Android 7.1

Bundled notifications:See what's new at a glance with bundled notifications from apps. Simply tap to expand and view more info without having to open the app.

Data Saver:Limit how much data your device uses with Data Saver. When Data Saver is turned on, apps in the background won't be able to access mobile data.

Notification Controls:When a notification pops up, just press and hold to toggle the settings. For instance, you can silence future alerts from an app in the notification itself.

Display size:Not only can you change the size of the text on your device, but the size of the icons and the experience itself.

Seamless Updates :On select new devices, software updates download in the background, so you won't have to wait while your device syncs with the latest security tools.

File-based encryption :By encrypting at the file level, Android can better isolate and protect files for individual users on your device.

Direct Boot :Starting your device is faster and apps run securely even before you enter your password

List of android 7 Nougat phones

HTC Android phones to receive the Android 7.0 Nougat update

  • HTC 10
  • HTC One A9
  • HTC One M9

Samsung Android Smartphones to receive the Android 7.0 Nougat update:

  • Samsung Galaxy S7
  • Samsung Galaxy S7 Edge
  • Samsung Galaxy Note 7
  • Samsung Galaxy Note 5
  • Samsung Galaxy S6
  • Samsung Galaxy S6 Edge
  • Samsung Galaxy S6 Edge Plus

LG Smartphones to receive the Android 7.0 Nougat update:

  • LG V20 (the LG V20 had Nougat out of the box)
  • LG G5
  • LG G4

Sony phones to receive the Android 7.0 Nougat update:

  • Xperia Z3
  • Xperia Z4 tablet
  • Xperia Z3 Compact
  • Xperia Z5
  • Xperia Z5 Compact
  • Xperia Z5 Premium
  • Xperia XA

Motorola Smartphones to receive the Android 7.0 Nougat update:

  • Moto G4 Plus
  • Moto G4
  • Moto G4 Play
  • Moto Z
  • Moto Z Force
  • Moto X Force
  • Moto X Style
  • Moto X Play
  • Moto G Turbo
  • Droid Turbo 2

OnePlus Smartphones to receive the Android 7.0 Nougat update:

  • OnePlus 3
  • OnePlus 2
  • OnePlus X

Android One Smartphones to receive Nougat updates

  • Cherry Mobile G1
  • Lava Pixel 1
  • Karbonn Sparkle V
  • Micromax Canvas A1
  • Spice Dream UNO
  • Infinix Hot 2
More Android One devices will be getting the update in coming days.

Google phones to receive ANDROID 7.0 Nougat

Google Pixel phones ran Android 7.1 out of the box
  • Nexus 6,
  • Nexus 5X
  • Nexus 6P
  • Nexus 9
  • Nexus Player
  • Pixel C

Sunday, 1 January 2017

New bug can crash your iPhone with a single text

iOS bug Renders Your Messages App Useless, but There is a fix too

iphone message app cash and its fix
iPhone is known for it's privacy&security,but this new bug can crash your iPhone with a single vCard
The only reason people choose iOS among any other mobile operating systems is its relative security and stability.iOS is generally considered to be secure,but a recently-discovered bug that disables the Messages app reveals that not even Apple’s mobile operating system is free from vulnerabilities.This iMessage bug is discovered by software developer vincedes3, is pretty simple but too malicious.It work on iOS 8 to iOS 10.2.1 b2 (latest version now).Apple iPhone users are worried and they are searching for 'how to block messages on iPhones' and 'how to delete messages on iPhone'

What is bug that crashes your messages on iPhone?

The exploit,involves a complex vCard, which is a transferable Address Book contact.Whereas typical vCards feature 200-300 lines of code, the developer’s vCard reportedly includes 14,281. As a result, when Messages tries to open the vCard, the app crashes.A bug in Apple's iOS won't allow the iMessage app to move past this huge file.

How this iPhone Message crash works.

When you click the vCard received, iOS want to read the text, the text in the file is very complicated for the system and cause a CPU average: the app freeze. You close the app, want to reopen but iOS want to reload the previous message but can’t because it’s the vcf file.
This video from vincedes3 will explain it better.

These crashes are not a one-time event, unfortunately — they happen every time you open Messages, since the app tries to open the most recent message. As such, restarting the phone or the app will not work, since the cycle will repeat itself.

Want to try this iOS message crash?

Try at your own risk!
vincedes3 explains the process as follows.
  • Download the file here
  • Upload it to iCloud Drive, Dropbox etc.. (just if you want to keep it)
  • Share the file to send it via Message
  • Send it to your victim
  • Wait for the victim click on it, the Message application freeze and don’t work anymore.

How to fix iPhone Message app crash?

Vincedes3 also provides fix for this crash.
Clicking on this link triggers a process that is supposed to fix the crash and return the iMessage app to its original working state.

Saturday, 31 December 2016

HTC VIVE :An amazing VR(virtual reality) product

HTC is one of the leading manufacturer of VR headsets and other devices

htc vivw vr head set
HTC Vive VR head set
Content Highlights
  • HTC VIVE
  • How it works
  • Unique features included in HTC VIVE VR headset
  • HTC VIVE for gaming
  • SteamVR™ Tracking technology
  • Where to buy and best deals for HTC VIVE
  • System requirements for HTC VIVE VR

HTC VIVE:The Ultimate VR effect

HTC Vive is room scale virtual reality head-mounted display launched by HTC which provides fully immersive Virtual Reality effect.Vive is brought to you by HTC and Valve. Uniting passion, talent, and innovation, Vive delivers on the promise of VR with best-in-class technology and content.

How HTC VIVE Works

This headset is designed to utilize "room scale" technology to turn a room into 3D space via sensors, with the virtual world allowing the user to navigate naturally, with the ability to walk around and use motion tracked handheld controllers to vividly manipulate objects, interact with precision, communicate and experience immersive environments.


htc vive fully immersive virtual reality
HTC Vive VR ser enables fully immersive VR

Awards won by HTC Vive

Unveiled during HTC's Mobile World Congress keynote in March 2015, the HTC Vive has since been awarded over 22 awards in CES 2016, including best of CES.
Best of CES 2016,Best Entertainment- Slash Gear

Unique features included in HTC Vive

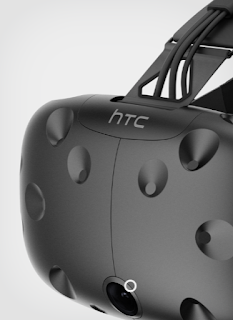

Front facing camera blends real world elements into the virtual world
htc vive vr front camera
front cam

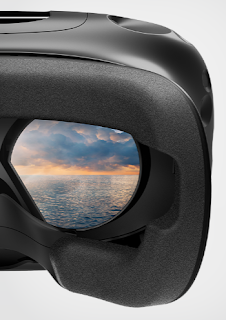

110 degree field of view
HTC VIVE VR Viewing angle
wide lenses

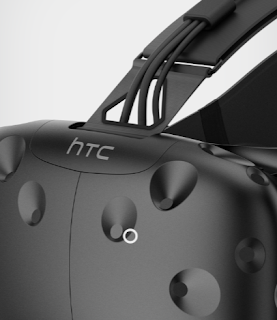

32 headset sensors for motion tracking
htc vive sensors
head set sensors
2160*1200 combined resolution and 90 Hz refresh rate deliver eye popping graphics and smooth action

HTC Vive for gamers

HD haptic feedback and intuitive gestures mean playing games and interacting with the virtual world comes naturally. Vive’s two wireless controllers feature 24 sensors for unobstructed movement, meaning you can do more in VR than ever before.
Haptic or kinesthetic communication recreates the sense of touch by applying forces, vibrations, or motions to the user.This mechanical stimulation can be used to assist in the creation of virtual objects in a computer simulation, to control such virtual objects, and to enhance the remote control of machines and devices. Haptic devices may incorporate tactile sensors that measure forces exerted by the user on the interface.
Intuitive gesture:gesture sensing through intuition rather than from reasoning or observation
Multifunctional track pad provides effortless precision and HD haptic feed back.Dual stage triggers with HD haptic feed back brings VR experience to a new level.Two handheld controllers each have 24 sensors for accurate tracking.


htc handheld controller
ht vive trackpad
trackpad

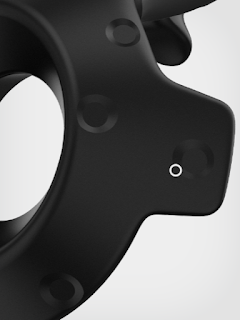

Sensors on handheld device

SteamVR™ Tracking technology

steam vr tracking technology
SteamVR™ Tracking technology
Breakthrough SteamVR™ Tracking technology lets the headset and controllers know in real time where they are within a room. Freely explore and interact with objects, characters and environments. Room-scale VR puts you at the center of everything.
two base station provides 360 degree motion tracking for superior VR experience
how SteamVR™ Tracking technology works
The tracking system gives you your own personal GPS right in your living room,accurate to a millimeter.Beacause LASERS roomscale VR gives you the freedom to move around and to gain an entirely new perspective on in-game world.If you get too close to the real world while in the virtual one ,the chaperone will give you a gentle(Virtual) reminder.

Vive port

htc viveport
Viveport is a place where people can discover the latest and greatest in VR content and experiences.interactive Videos, games and much more
Vive provides you with a handful of VR contents at vive port.

What you need for experiencing fully immersed VR using HTC Vive


How to buy HTC Vive VR head set

You can purchase HTC Vive directly from vive store  or from leading online stores amazon and ebay.
It is also available at microsoft store

HTC Vive best buy

HTC Vive VR set is priced between $839.99 $600 and $800.
Price of HTC Vive at various online shopping karts :
  • eBay-$839.99 (new)
  • eBay-$650 (used)
  • amazon-$799.99
  • microsoftstore- $799.99
  • Vive store-$799.99

HTC vive system requirements

HTC has tested systems and worked with industry-leading manufacturers to bring you computers ready for Vive right out of the box. From graphics cards and processors to memory and storage space–these computers deliver a superior VR experience.
Recommended computer spec for installing vive
  • Processor: Intel™ Core™ i5-4590 or AMD FX™ 8350, equivalent or better
  • Graphics: NVIDIA GeForce™ GTX 1060 or AMD Radeon™ RX 480, equivalent or better. For additional graphics card options, view the complete list.
  • Memory: 4 GB RAM or more
  • Video output: 1x HDMI 1.4 port, or DisplayPort 1.2 or newer
  • USB: 1x USB 2.0 port or newer
  • Operating system: Windows™ 7 SP1, Windows™ 8.1 or later or Windows™ 10
You can also check your PC using a small exe file provided in htc vive site.

Friday, 2 December 2016

How Fingerprint Scanners in mobile phones Work?

Fingerprint Scanners in smart phones

fingerprint scanners in mobile phones
Latest smartphones like google pixel feature capacitance sensor based fingerprint scanners.
Content Highlights
  • Fingerprint scanners in smartphones
  • Structure and working of fingerprint sensors in smartphones
Underlying technology of Fingerprint Scanners in smart phones are quite different from ordinary fingerprint sensors.Fingerprint sensors can be broadly classified into two.Optical sensors and capacitive sensors.
An optical fingerprint sensor is an electronic device used to capture a digital image of the fingerprint pattern. This image is digitally processed to create a biometric template (a collection of extracted features) which is stored and used for matching.Fingerprint sensors in modern smartphones are capacitive sensors.
The diagram below shows a simple capacitive finger print sensor. The sensor is an array of tiny sensing cells. Each cell has two conductor plates.Working of this sensors are similar to the working of touch sensors.
structure of capacitive finger scanners
capacitance based finger print sensor cells
The sensor is connected to an electronic circuit which sense even minute current variations.Working of this sensing circuit is beyond the scope of this article.Main component of this sensing circuit is an amplifier which amplifies the minute current variations.You might have studied in your high school physics "The factors affecting capacitance":
  • Plate Area.
  • Plate Spacing ( distance between the plates )
  • Dielectric Material.
Finger you are placing over the sensor will act as dielectric.When finger's ridges are placed over conductive plates, it increase the capacitance between plates, while an air gap(valley) will leave the charge at the capacitor relatively unchanged.In short the capacitor in a cell under a ridge will have a greater capacitance than the capacitor in a cell under a valley.Variation in capacitance will result in current flow.This variation is amplified by the sensing circuit.This analog signals are converted into digital signals using an ADC(Analog to Digital Converters) and required signal processing is carried out to extract the feature of a fingerprint.

Monday, 7 November 2016

Technologies used in Google Pixel smartphone

Finally Google launched its own branded smartphone ,Google Pixel.Let us have a look at some unique features and technologies used in  Google Pixel and Google Pixel XL
Google pixel and Google pixel XL have incorporated various modern technologies to give an edge over its rivals.

Camera

According to google "The highest rated smartphone camera. Ever.With a best-ever 89 DxOMark Mobile score, Pixel's camera lets you take brilliant photos in low light, bright light or any light"
Main camera has 12.3MP
Google Pixel comes with a 12.3MP primary camera
Phase detection autofocus:The phase detection/AF system is a very complex system that sees improvements pretty much every time when a higher end camera line is refreshed. Over the years, the number of autofocus points have been increasing, as well as the number of more reliable cross-type autofocus points.
Laser detection autofocus:It makes use of laser sensor system to adjust the focus of the handset's rear camera.
Google Pixel combines Phase detection and Laser detection to improve auto focusing capabilities of its rear camera.
f/2.0 Aperture:What does an "f/2.0 lens" mean?-Simply put, it's the ratio between the focal length of the lens and the aperture / hole that lets light through the lens into the camera.For example, an f/2.0, 50mm lens would have a aperture/hole diameter of 25mm.So the large the 'f' number, the smaller the opening.So,f/2.0 lens in a Google Pixel/Google Pixel XL   lets a lot of light through.
Sensor size:Large 1.55μm pixels-smaller pixels means higher clarity
Geo-tagging:You can add geographical identification metadata to photographs.
Secondary camera:8 MP, f/2.4 Aperture,Sensor size: 1.4 µm pixel

The first phone with the Google Assistant built in.

What is Google Assistant?-Google Assistant is Google's latest virtual assistant.It is designed to be personal voice assistant.
Here's how Google explains its new assistant:
"The assistant is conversational - an ongoing two-way dialogue between you and Google that understands your world and helps you get things done. It makes it easy to buy movie tickets while on the go, to find that perfect restaurant for your family to grab a quick bite before the movie starts, and then help you navigate to the theater."

How google assistant works

Google Assistant is designed to be conversational. That means you can ask a question and then ask several follow-up questions, and Google Assistant will be able to keep track of the conversation, determine context, and audibly respond with the right information.

For example, you can ask what you should have for dinner, and Google Assistant will locate local places to eat and serve up suggestions, with cards for a selection of restaurants.
Here's how Google Assistant works across the different Google devices.

Unlimited storage for all your photos and videos.

Anyone can download and install Google Photos on their iOS or Android phone. But the photo storage service caps photo resolution at 16 megapixels and video resolution at full HD (1,920 x 1,080) if you want to store an unlimited amount of media for free.
This means if you want to store higher resolution photos and videos at greater resolution (like 4K), you'd need to pay for a monthly storage plan.
With unlimited photo and video storage and their highest resolutions, the Pixel phones are an attractive value for people who want to store their memories in full forever.

Switching

It’s easier than ever to switch.
Switching enables you to transfer data from your existing phone to google pixel
Connect your old iPhone or Android device to your new Pixel with the Quick Switch Adapter.Switching from iPhone, Sign in to your Google Account. If you don't already have one, you'll be asked to create one.
Switching from Android,then your new Pixel should automatically sign you in to your Google Account, but if not, simply enter your password.
Once you’ve signed in to your Google Account, choose what you want to move, like your contacts, calendar events, photos, videos, music, SMS messages, iMessages and more. Then sit back and let Pixel do the work.
Supported devices include:

  • iPhone or iPad running iOS 8 and up
  • Nexus 5, 6, 5X, 6P running Android 5.0 and up
  • Most Android devices running Android 5.0 and up

AMOLED capacitive Multi-touch Display

AMOLED (active-matrix organic light-emitting diode):The key component in an LED display types is a Light Emitting Diode (LED)the key component in these display types is a Light Emitting Diode (LED). In an LED display panel these are shrunk down dramatically and arranged in red, green and blue clusters to create an individual pixel that can reproduce white light and various colors.
Layers of an AMOLED display
The O in OLED stands for organic.There are a series of thin organic material films placed between two conductors in each LED, which is then used to produce light when a current is applied.AM part in AMOLED stands in for Active Matrix, rather than a passive matrix technology.In a passive matrix, a complex grid system is used to control individual pixels, where integrated circuits control a charge sent down each column or row. But this is rather slow and can be imprecise. Active Matrix systems attach a thin film transistor (TFT) and capacitor to each LED. This way, when a row and column is activated to access a pixel, the capacitor at the correct pixel can retain its charge in between refresh cycles, allowing for faster and more precise control.The major benefits from OLED type displays comes from the high level of control that can be exerted over each pixel. Pixels can be switched completely off, allowing for deep blacks and a high contrast ratio. Being able to dim and turn off individual pixels also saves on power. The lack of other layers on top of the LEDs means that the maximum amount of light reaches the display surface, resulting in brighter images with better viewing angles.
In super AMOLED display,it incorporates the capacitive touchscreen right into the display, instead of it being a separate layer on top of the display. This makes the display thinner.

16M colors:Pixel supports True color 24-bit representation or for a total of 224 or 16,777,216 color variations.
Resolution 1440 x 2560 pixels (~534 ppi pixel density):Pixel density (PPI) Refers to the concentration of pixels on a particular display, measured in pixels per inch (ppi). Pixel density is calculated by dividing the diagonal pixel resolution of a display by its diagonal size.
Multitouch:Multi-touch is a method of input on a touchscreen that allows two or more fingers to be used on the screen at one time.
Protection Corning Gorilla Glass 4:This prevents possible scratches.

Join Our Newsletter
